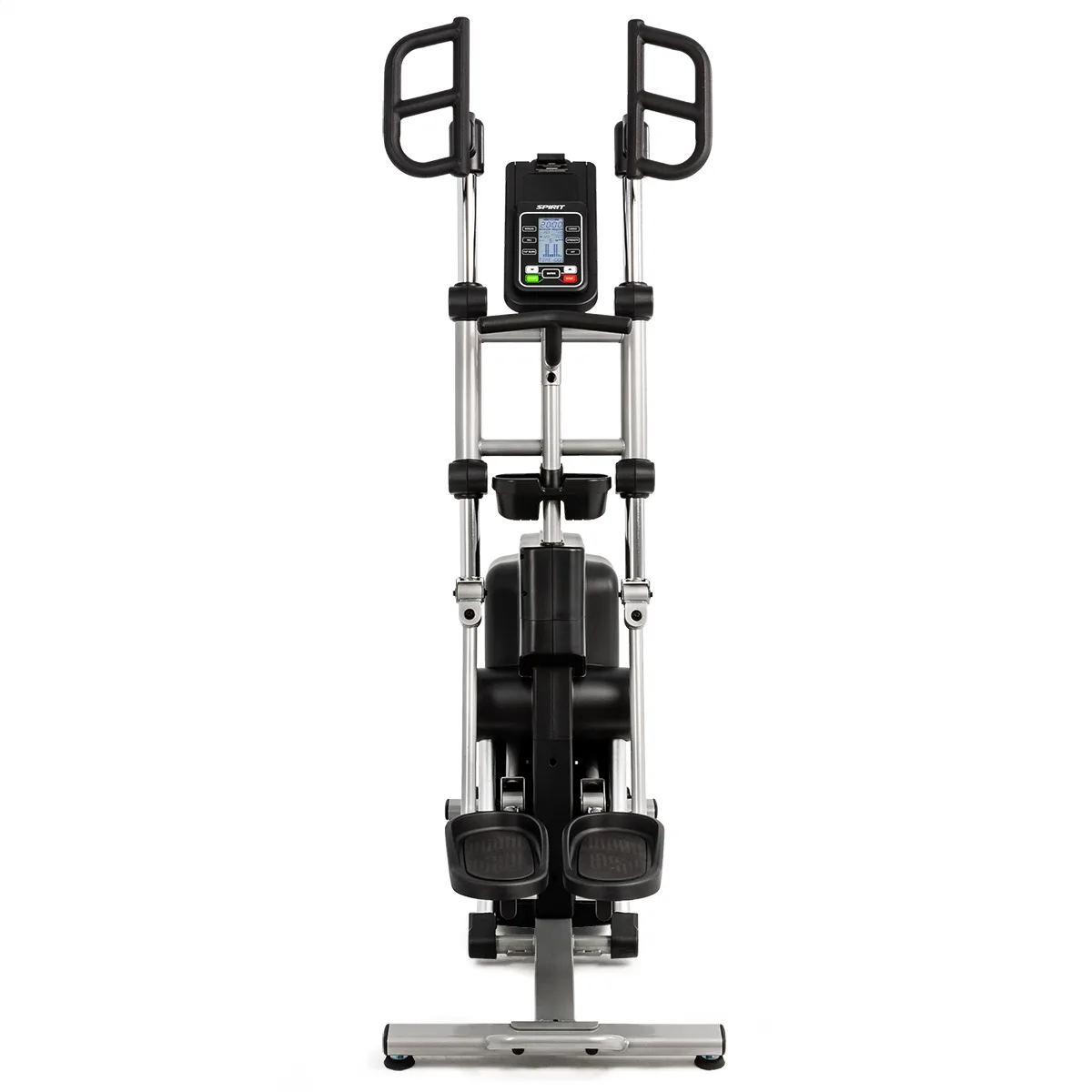

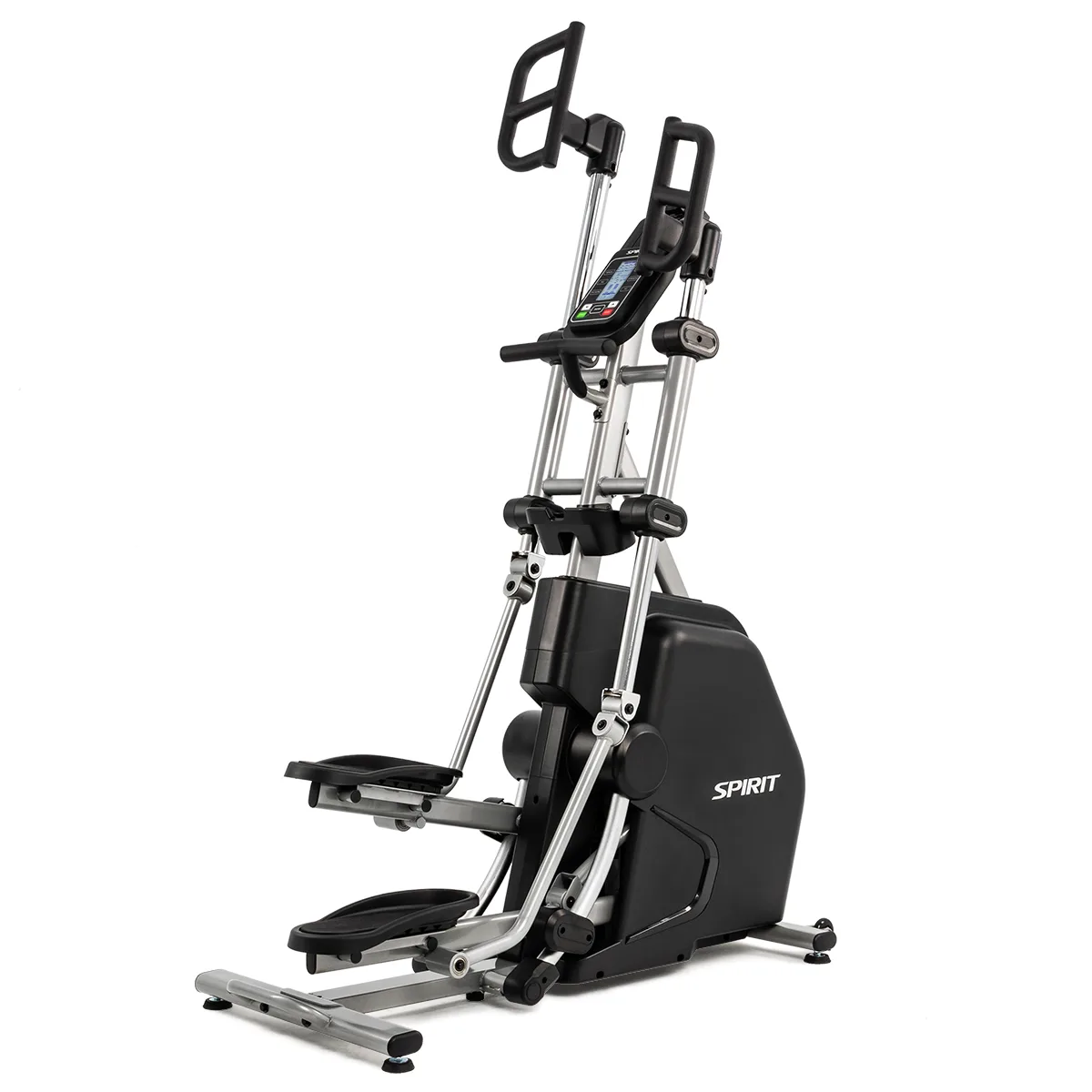

CVC800 Vertical Climber

The Spirit Fitness CVC800 Vertical Climber combines the natural 12” arched stepping action and narrow 2” pedal spacing (Q-Factor) with an effective upper body workout in a compact space saving design. It is a fantastic way to get a heart-healthy, total body workout.

Key Features

Total body workout in a compact space-saving design
Oversized (8.4” x 16.5”) padded foot pedals with 2” Q-Factor
6 effective programs with up to 20 levels of resistance
Large 23 lb flywheel and natural 12” arched step motion
Multiple padded hand grip positions for maximum workout variety

Ideal For

Health ClubsHotelsUniversitiesCorporate Wellness

Request Commercial Pricing

Volume discounts available for multi-unit facility installations.

REQUEST A QUOTE

Technical Specifications

Power Source: AC 100V / 50HZ or AC 240V / 60HZ
Performance: 23 lb Flywheel, 10 - 210 Steps per Minute, 0 - 20 Levels of Magnetic Resistance
Frame: Multi-Position Hand Grips, Heavy-Gauge High-Strength Electroplated Steel Frame, Single Anodized Aluminum Rail Track, Oversized Footpads (16.5" L x 8.4" W x 2.9" H), 2” Q-Factor

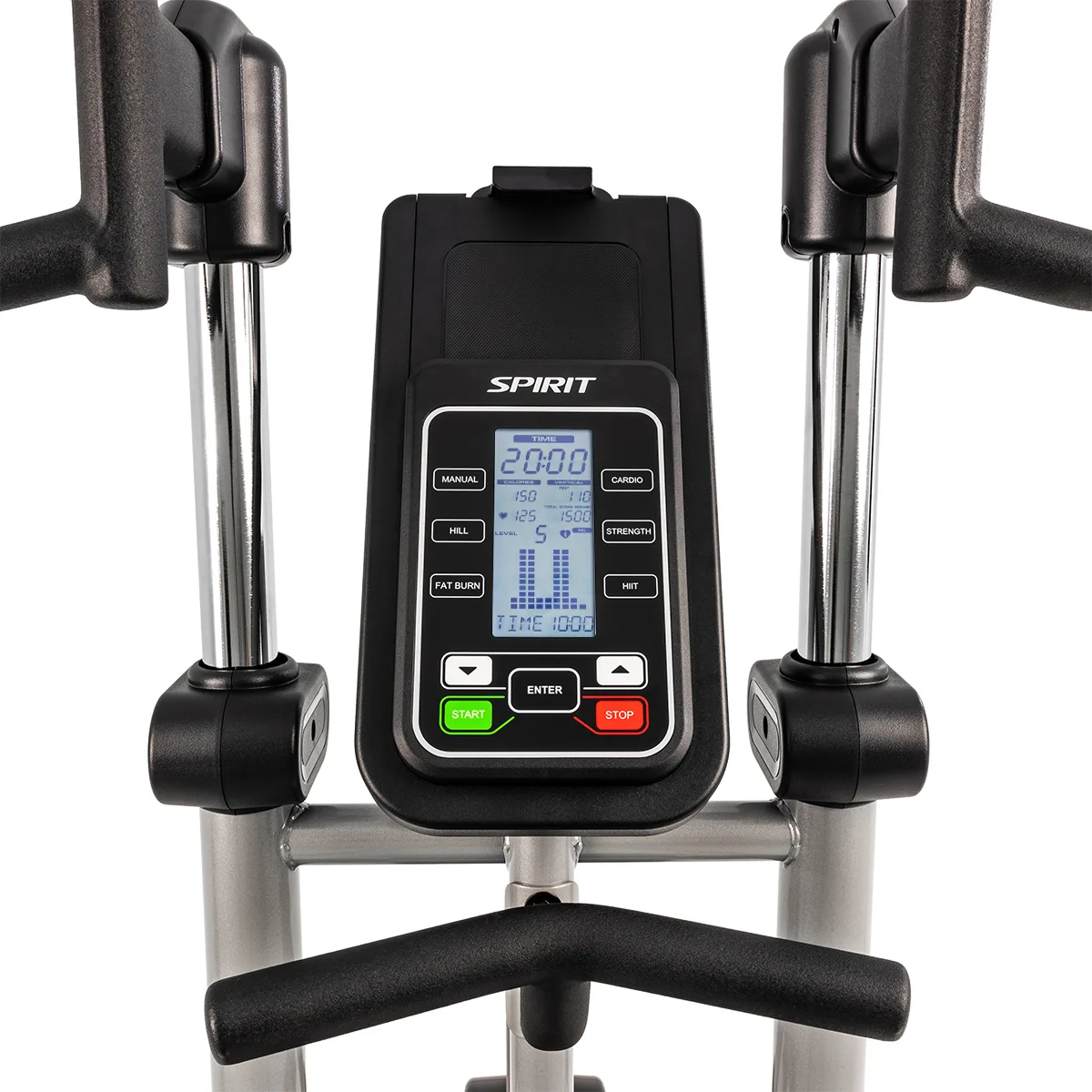

Display: LCD
Display Size: 5.5" diagonal
Feedback: Time, Level, Vertical Distance, Calories, Steps
Programs: Manual, Hill, Fat burn, Cardio, Strength, HIIT
Console Buttons: Start, Stop, Manual, Hill, Fat burn, Cardio, Strength, HIIT, Enter, ˅ / ˄
Console: Bluetooth FTMS 4.0
Convenience: 5KHz or Bluetooth Heart Rate Transmitter (Chest Strap Sold Separately), Accessory Tray, Cup Holder, Transportation Wheels and Levelers
Set-Up Dimension: 58.7" L x 27.6" W x 84.3" H
Box Dimension: 58.1" L x 22.4" W x 39.8" H
Item Weight: 220.5 lb
Box Weight: 264.6 lb
Max User Weight Capacity: 400 lb

N/A

Frame Warranty

5 YR

Parts Warranty

2 YR

Labor Warranty
